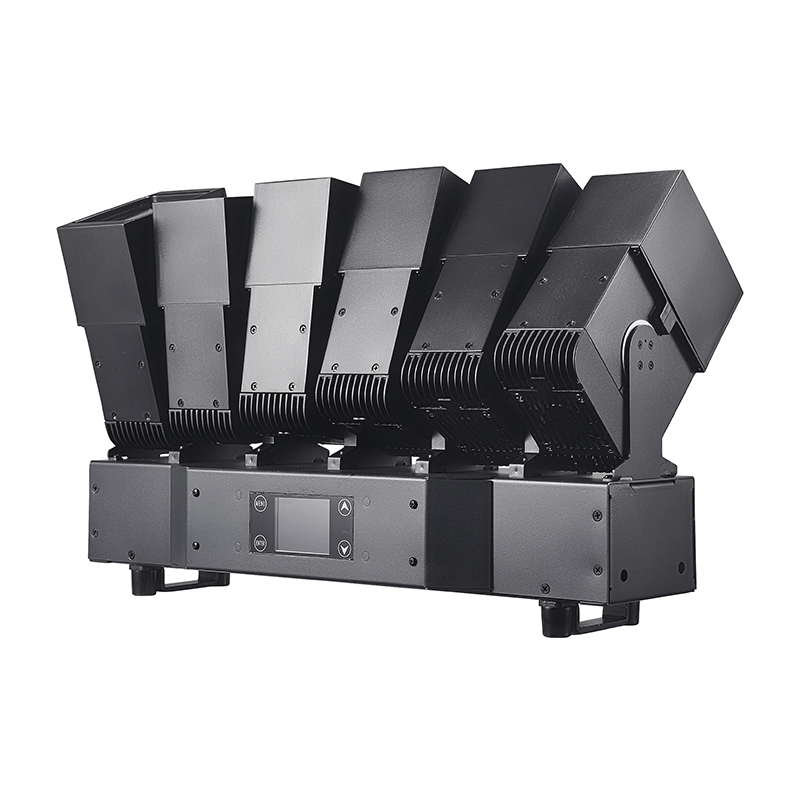

LED 6X60W RGBW Swing Beam Moving

Voltage: AC100-240V 50/60HZ

Power supply: 400W Main beam: 60W * 6 LEDs 6065

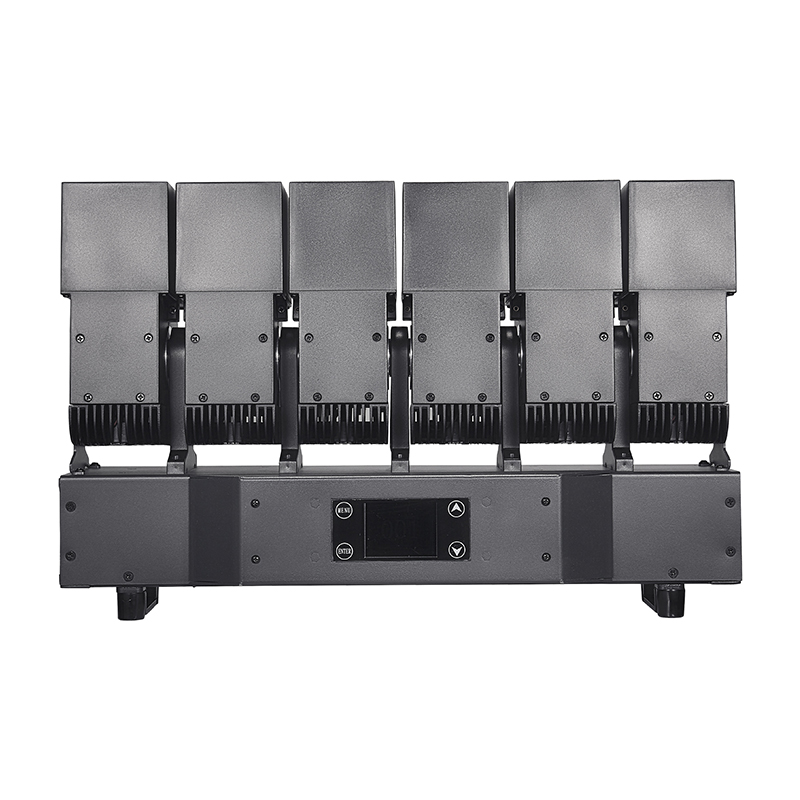

Display screen: Chinese and English menus, touch 4 keys, 2.4-inch display screen

Focusing system: segmented independent single point single control

Beam angle: 2.8-31 degrees

Spot angle: 5 ° -55 ° Strobe frequency: 1-25Hz

Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video recording and shooting Vertical angle: 220 ° in the vertical direction (16 bit precision scanning). The Y-axis adopts high-speed mute for faster and smoother operation. When there is a misoperation, it can automatically return to its original position, and the vertical speed is adjustable; Y-axis rotation function and reverse function;

Using optical electromagnetic coding for high-precision positioning Vertical control: independent single head control swing Control signal: DMX512，RDM, Master slave, voice controlled or self-propelled program Control channel: CH20. CH35. CH59. CH89. CH91. CH101 Default channel CH35

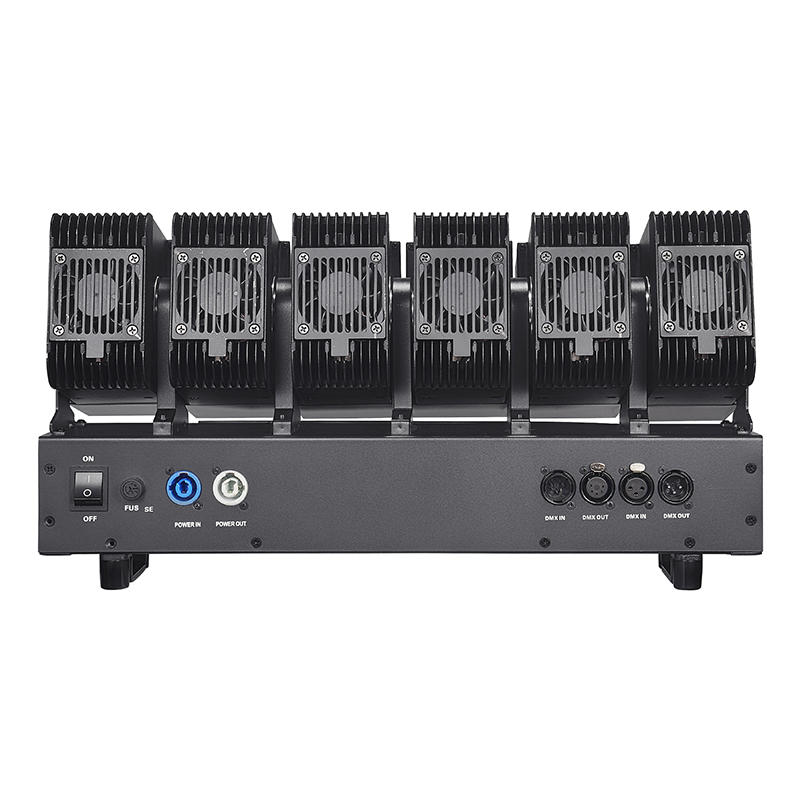

Power connection method: Power input/output, maximum connection quantity @ 5 units 230V, 3 units 120V Signal connection method: DMX512 input/output, maximum connection quantity of 30 3-core units Support network protocol Artnet Splicing method: Can be quickly spliced horizontally Working temperature:- 10°C~45°C

IP rating: IP22

Net weight: 13.05KG Gross weight: 15KG

Product size: 500 * 139.76 * 295.5MM (excluding machine foot height)

Packaging size: 513 * 34 * 19CM (one pack, one)
