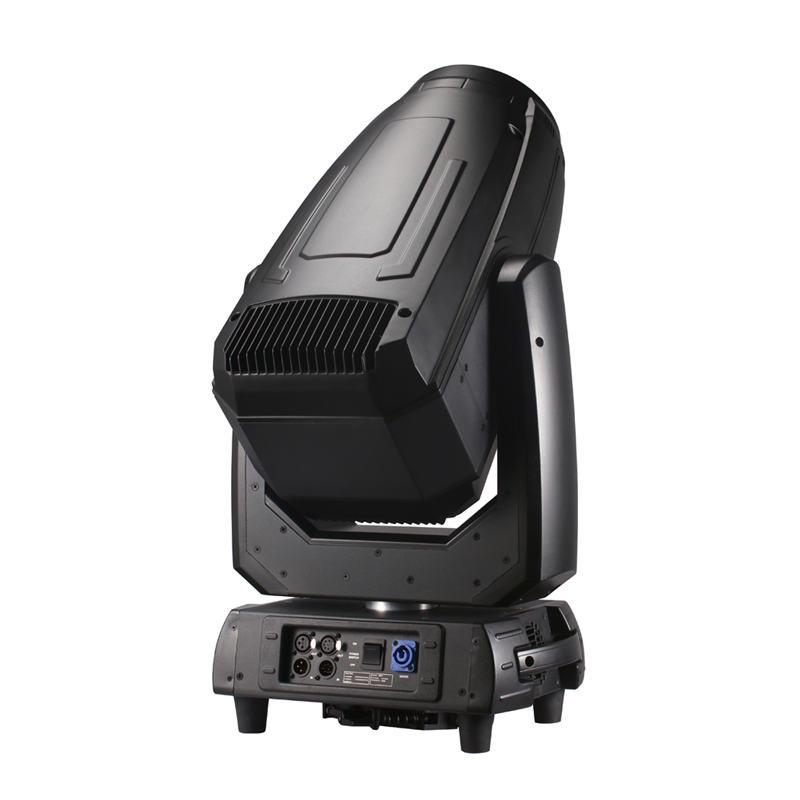

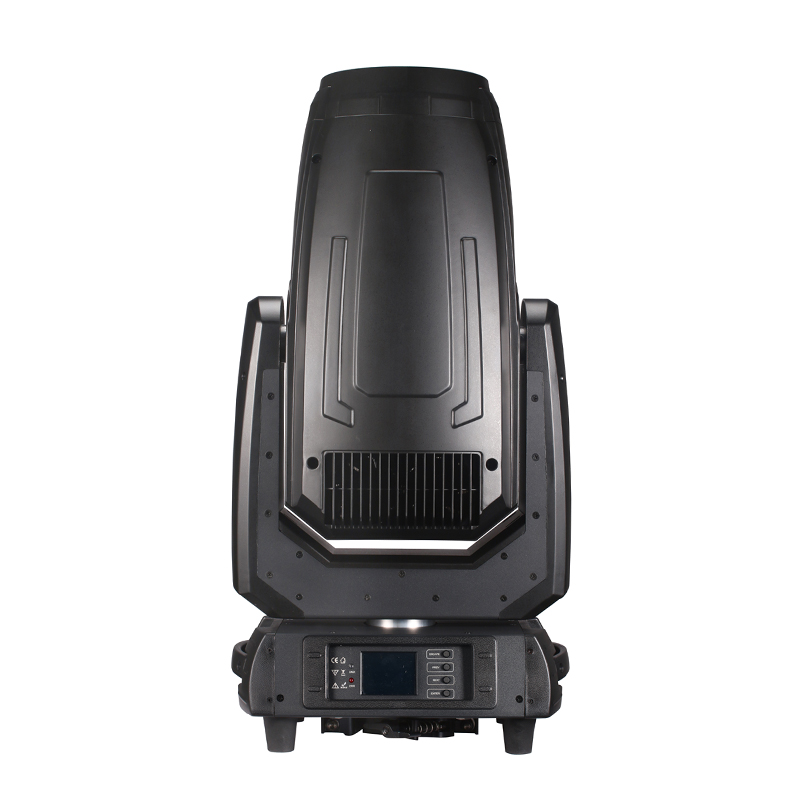

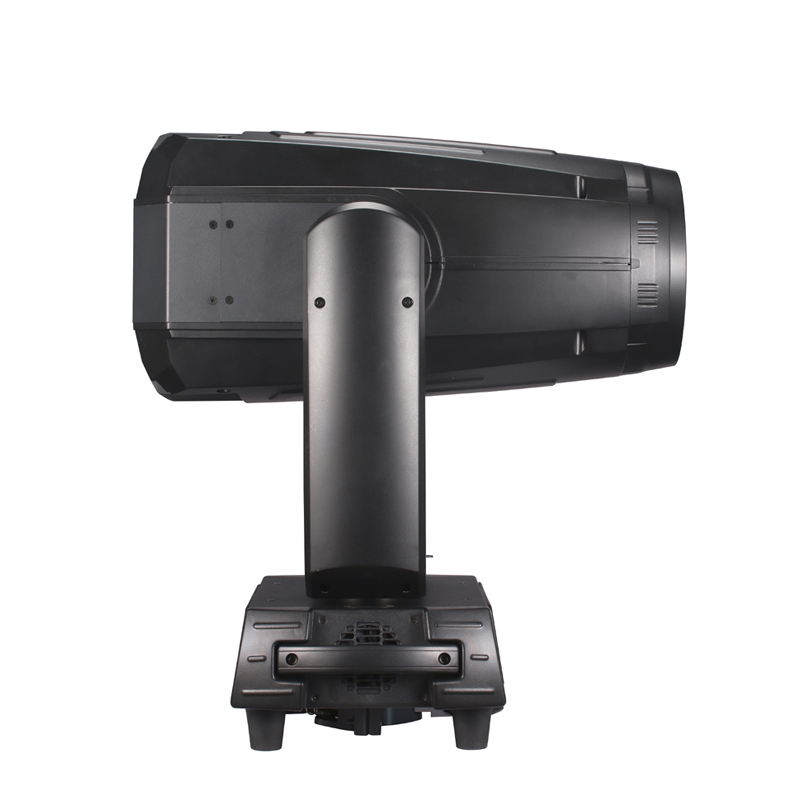

LED 800W Profile Light

Light source type:

800W White LED Engine

CRI:

CRI 93

LED life expectancy:

min. 50.000 hours

High-efficiency 13-lens zoom optical

system ratio:9:1

Zoom range:5.5° - 50°

Cyan:0 - 100%

Magenta:0 - 100%

Yellow:0 - 100%

Variable CTO:3.000K - 6.700K

+ - Green correction function

Colour Wheel 1:

5 fixed dichroic colours + white

Colour Wheel 2:

one multicolour filter, two dichroic filters and two CRI filters (80, 90) + white

Protocols:

USITTDMX-512,RDM,

ArtNet( can choose)

Framing:

Rotatable framing module, +/-45°, with 4 individually controllable full framing blades with variable angle and position.

Rotating gobo wheel:

7 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot &

lock system

Static gobo wheel:

9 static and replaceable gobos + open

Animation wheel:

Aluminium animation wheel, used alone or in combination with gobos, rotating in both

directions at variable speed

Prism:

6-facet prism rotating in both directions at variable speed

Iris:

Motorized, stepless, pulse effects up to 3 Hz

Frosts: yes Motorized zoom and focus

DMX Protocol modes: 4

Control channels: 49, 42, 50, 43

Pan movement: 540°

Tilt movement: 265°

Weight: 26.5kg
