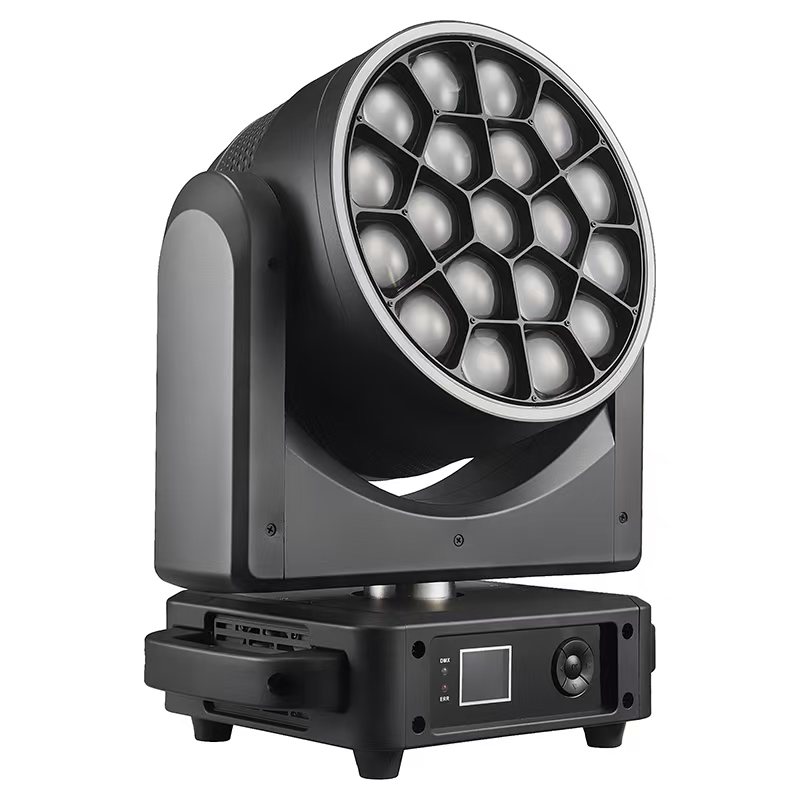

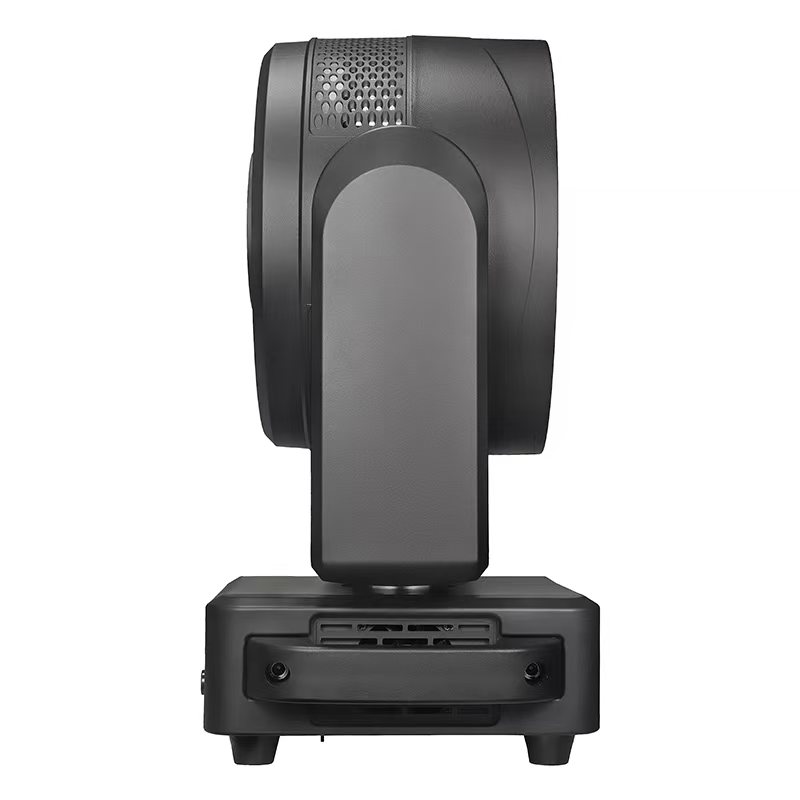

LED 19X40W BEE-EYE II
Rated voltage: AC100V～240V 50/60Hz
Input power: 850W
Light source specification: 19 pieces of 40W RGBW LED5060
Auxiliary light source: 74 0.5W LED beads
Rated lifespan: 30000 hours
Colors: Red, Green, Blue, White, Multiple Colors
Focusing: 4 ° -60 ° DMX linear focusing
Color temperature control: built-in CTO DMX linear dimming
Electronic strobe, 0.3-25 times/second, can choose synchronous or asynchronous random
strobe
Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming
frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and
smoothness without flicker, using stable constant current drive and power supply,
suitable for video recording and shooting
Rotation angle: The XY axis is driven by a high-speed silent 60 three-phase motor,
coupled with a high-precision imported Hall positioning device, making the operation
positioning more accurate. When there is a misoperation, it can automatically return to
its original position, and the horizontal and vertical speeds can be adjusted; XY axis
rotation function and reverse function,
Horizontal direction 540 ° (16 bit precision scan), vertical direction 270 ° (16 bit
precision scan)
Control mode: 32 (simplified) 34CH/46CH
78CH/92CH/97CH/99CH (standard) 7 channel control modes, standard DMX512 protocol, RDM
protocol
Control interface: DMX512 interface (3-core/optional 5-core), power cord handle socket
Sleep function: Advanced technology is used to achieve remote sleep function. When the
light fixture disconnects the signal, it automatically enters sleep mode, making the
light fixture more stable and safe
Display function: 1.77-inch LCD screen, bilingual menu in Chinese and English, sensor
fault display, temperature display
Cooling system: High conductivity lightweight aluminum radiator is used, and the
intelligent monitoring technology of the fan automatically adjusts the fan speed
according to the temperature of the lamp. The built-in overheat protection intelligent
system/intelligent temperature and noise balance module
Protection level: IP20， Optional rain cover with protection level up to IP44
Lamp packaging: waterproof and shockproof aviation box or cardboard box
Net weight: 12.8KG Gross weight: 14.85KG Product size: 34 * 23 * 41CM Packaging size: 47
* 41 * 34CM (one pack, one)
Effect modes: (Vortex, Kaleidoscope, Dyeing, Beam)
The front mirror disc can rotate infinitely, seamlessly spliced mirror disc, non
spherical lens structure, single point control of light bead, light strip effect: strobe
, scrolling effect, with built-in program
characteristic:
1. Screen automatic rotation function, the system can automatically rotate the screen
according to the direction of gravity, without the need for manual rotation! You can
also turn off the automatic rotation function
2. The integrated motherboard design solves the problems of e-liquid, colored paper, etc
. It can independently control the LED beads, race effect, built-in and other rich
effects. The product has built-in RDM remote control panel dialing upgrade functionPackage size: 49 * 47 * 39CM (one pack and one)
Effect mode: (vortex, kaleidoscope)
The front mirror plate is variable to infinite rotation, seamless splicing
mirror plate, unspherical lens structure, single point control light belt
effect: strobe, horse racing effect, with built-in program
characteristic:
1. Screen automatic rotation function, the system can automatically rotate
the screen according to the direction of gravity, without manual rotation!
You can also turn off the automatic rotation function
2. Integrated motherboard design, solve the problems of smoke oil, colored
paper and so on, can separate section control control lamp beads, horse
racing effect, built-in and other rich effects, the product built-in RDM
remote console dial code upgrade function
